MAGNETIC HOTPLATE STIRRER

MAGNETIC HOT PLATE STIRRER

brand

Available Models :

  1. MS-H-proA – LCD Digital Magnetic Hotplate Stirrer
  2. MS-H-Pro+ – LCD Digital Magnetic Hotplate Stirrer
  3. MS-H-ProT – LCD Digital Magnetic Hotplate Stirrer with Timer
  4. MS-H-S – Analog Magnetic Hotplate Stirrer
  5. MS-H380-pro – LCD Digital Magnetic Hotplate Stirrer

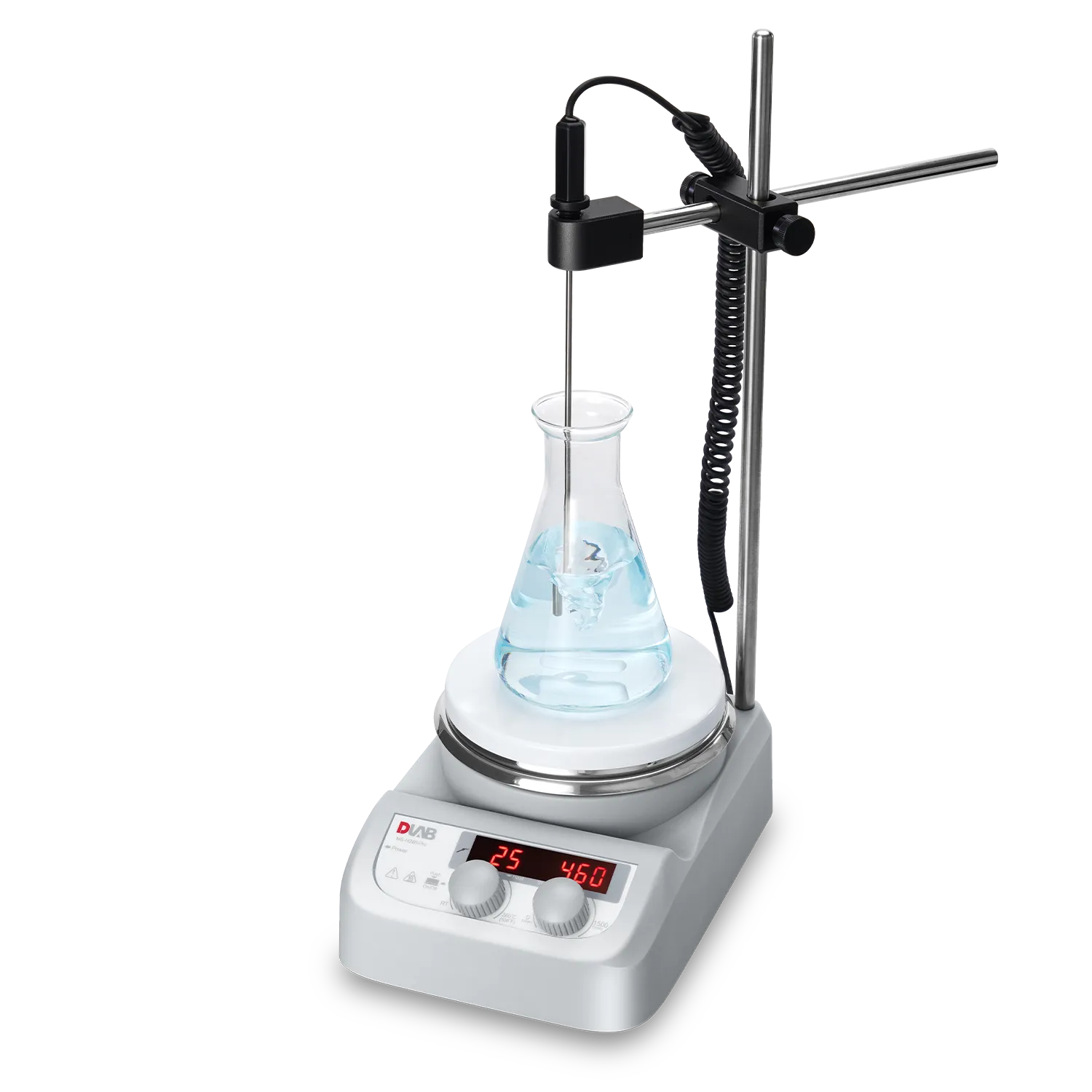

  6. MS-H280-pro – LED Digital Magnetic Hotplate Stirrer



Available Models

Model Number Product Name
MS-H-ProA LCD Digital Magnetic Hotplate Stirrer
MS-H-PRO LCD Digital Magnetic Hotplate Stirrer
MS-H-PRO-T LCD Digital Magnetic Hotplate Stirrer with Timer
MS-H-S Analog Magnetic Hotplate Stirrer
MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer
MS-H280-Pro LED Digital Magnetic Hotplate Stirrer

Specifications

Specifications MS-H-ProA MS-H-PRO MS-H-PRO-T MS-H-S MS-H380-Pro MS-H280-Pro
Work plate Dimension [W × D] Ø135mm (5 inch) Ø135mm (5 inch) Ø135mm (5 inch) Ø135mm (5 inch) 140×140mm Ø135mm (5 inch)
Work plate material Aluminum cover with ceramic coating Stainless steel cover with ceramic Stainless steel cover with ceramic Stainless steel cover with ceramic Aluminum cover with ceramic coating Stainless steel cover with ceramic
Motor type Brushless DC motor Brushless DC motor Brushless DC motor Brushless DC motor Brushless DC motor Brushless DC motor
Stirring positions 1 1 1 1 1 1
Max. stirring quantity (H?O) 20L 20L 20L 20L 5L 3L
Max. magnetic bar length 80mm 80mm 80mm 80mm 50mm 50mm
Speed range 100–1500rpm, resolution ±1rpm 100–1500rpm, resolution ±1rpm 100–1500rpm, resolution ±1rpm 0–1500rpm, resolution ±1rpm 200–1500rpm 200–1500rpm
Speed display LCD LCD LCD Scale LCD LED
Temperature display LCD LCD LCD Scale LCD LED
Heating temperature range Room temp.–340°C, increment 1°C Room temp.–340°C, increment 1°C Room temp.–340°C, increment 1°C Room Temp.–340°C Room Temp. ±5–380°C Room Temp. ±5–280°C
Temperature control accuracy ±1°C (<100°C), ±1% (>100°C) ±1°C (<100°C), ±1% (>100°C) ±1°C (<100°C), ±1% (>100°C) – – ±1°C (<100°C), ±1% (>100°C)
Overheating temperature protection 420°C 420°C 420°C 420°C 420°C 320°C
Temperature display accuracy ±0.1°C ±0.1°C ±0.1°C ±0.5°C ±0.1°C ±1°C
External temperature sensor PT1000 (accuracy ±0.2°C) PT1000 (accuracy ±0.2°C) PT1000 (accuracy ±0.2°C) PT1000 (accuracy ±0.2°C) PT1000 (accuracy ±0.2°C) PT1000 (accuracy ±0.2°C)
"Hot" warning 50°C 50°C 50°C – – 50°C
Data connector RS232 RS232 – – – –
Protection class IP21 IP21 IP21 IP21 IP21 IP42
Timer function – – 1min to 99h59min – – –
Motor rating input 18W 18W 18W 18W 2.4W 5W
Motor rating output 10W 10W 10W 10W 1.8W 3W
Power 650W 550W 550W 530W 510W 515W
Heating output 600W 500W 500W 500W 500W 500W
Voltage 100–120/200–240V, 50/60Hz 100–120/200–240V, 50/60Hz 100–120/200–240V, 50/60Hz 100–120/200–240V, 50/60Hz 100–120/200–240V, 50/60Hz 100–120/200–240V, 50/60Hz
Dimension [W×D×H] 280×160×100mm 160×280×100mm 160×280×100mm 160×280×100mm 320×180×108mm 150×260×100mm
Weight 2.3kg 2.8kg 2.8kg 2.8kg 2.2kg 1.8kg
Permissible ambient temperature and humidity 5–40°C, 80%RH 5–40°C, 80%RH 5–40°C, 80%RH 5–40°C, 80%RH 5–40°C, 80%RH 5–40°C, 80%RH




Click Here to Download
